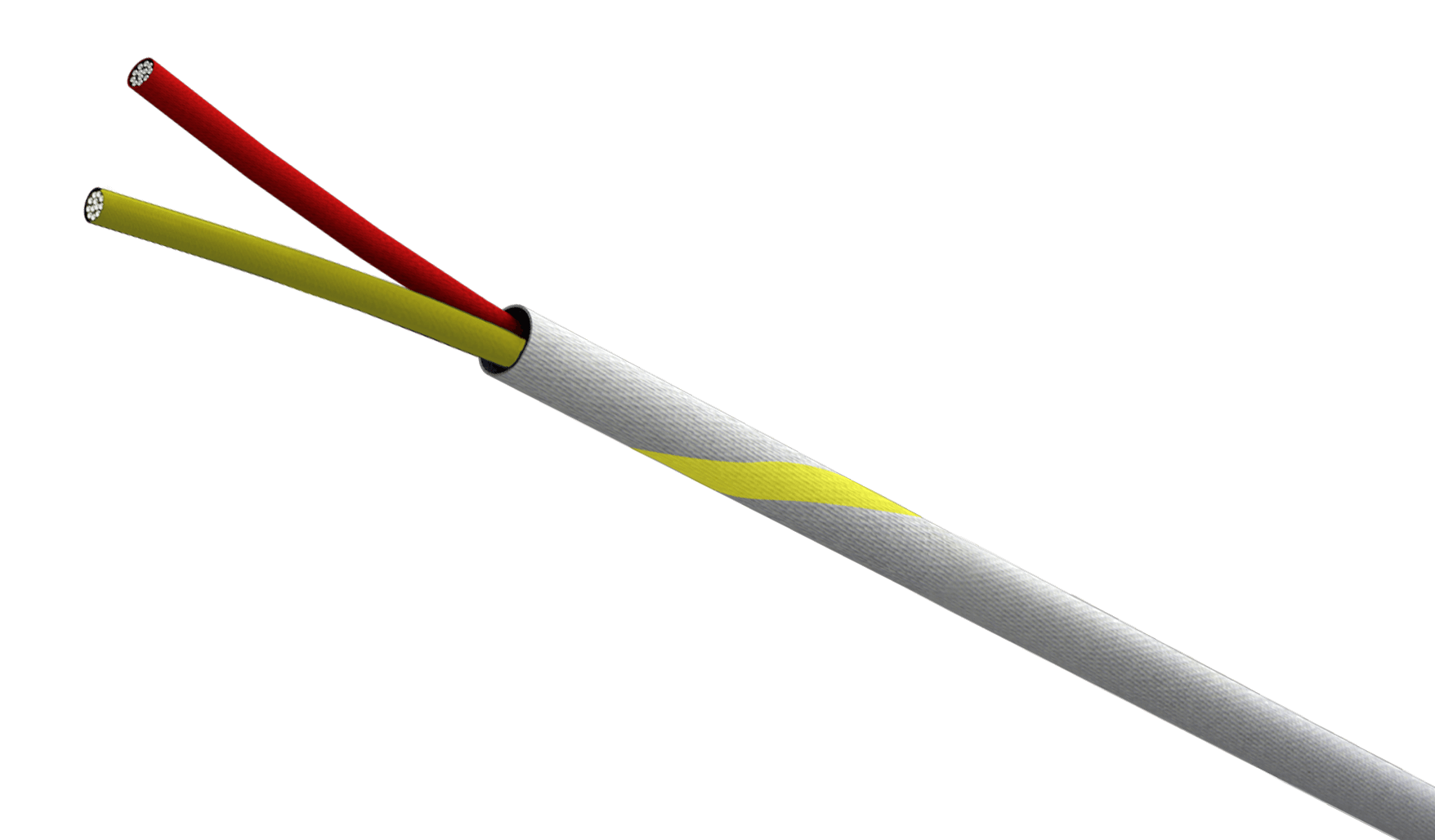

DESCRIPTION
High temperature fiberglass insulation - High temperature fiberglass outer braid
CONSTRUCTION
- Working temperature: up to 1202 °F
- Reference standards: ASTM E230 (ANSI MC.96.1)
- Conductors: solid, type K 20 AWG
- Insulation: high temperature fiberglass braid
- Impregnation: water based resin
- Color code: positive yellow negative red
- Core laying-up: flat twin
- Outer jacket: high temperature fiberglass braid
- Impregnation: varnish
- Color code : white with yellow tracer
