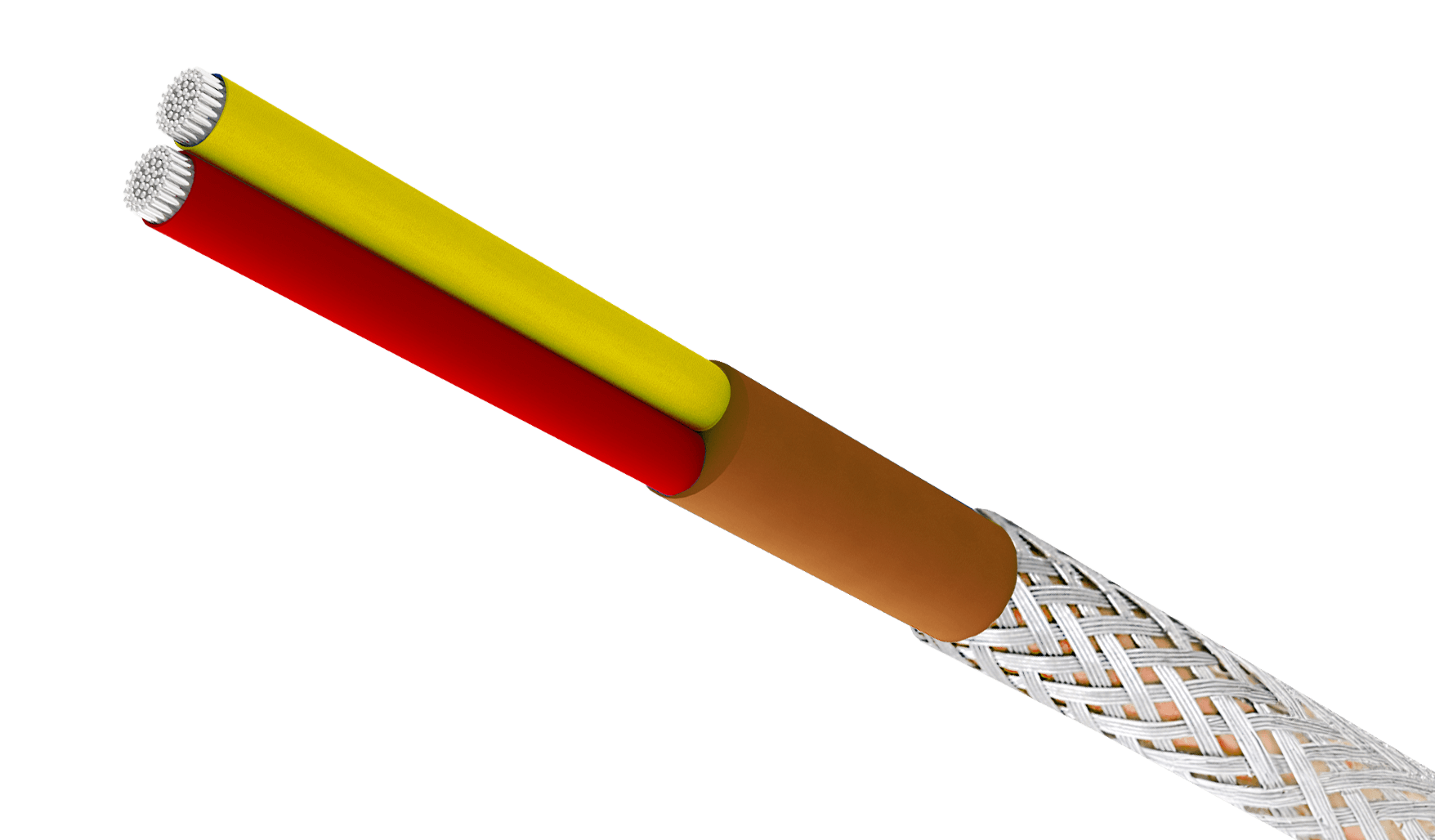

FEP insulation - FEP jacket - Stainless steel braided armour
CONSTRUCTION
- Working temperature: -328/+401 °F
- Reference standard: ASTM E230 (ANSI MC.96.1)
- Conductor: stranded, type K 20 AWG
- Insulation: FEP
- colour code: negative red, positive yellow
- Core laying - up: flat twin
- Outer jacket: FEP
- colour code: brown
- Armour: stainless steel 304 braid
- colour code: neutral
Visit our parent company’s website to explore more constructions and examples
