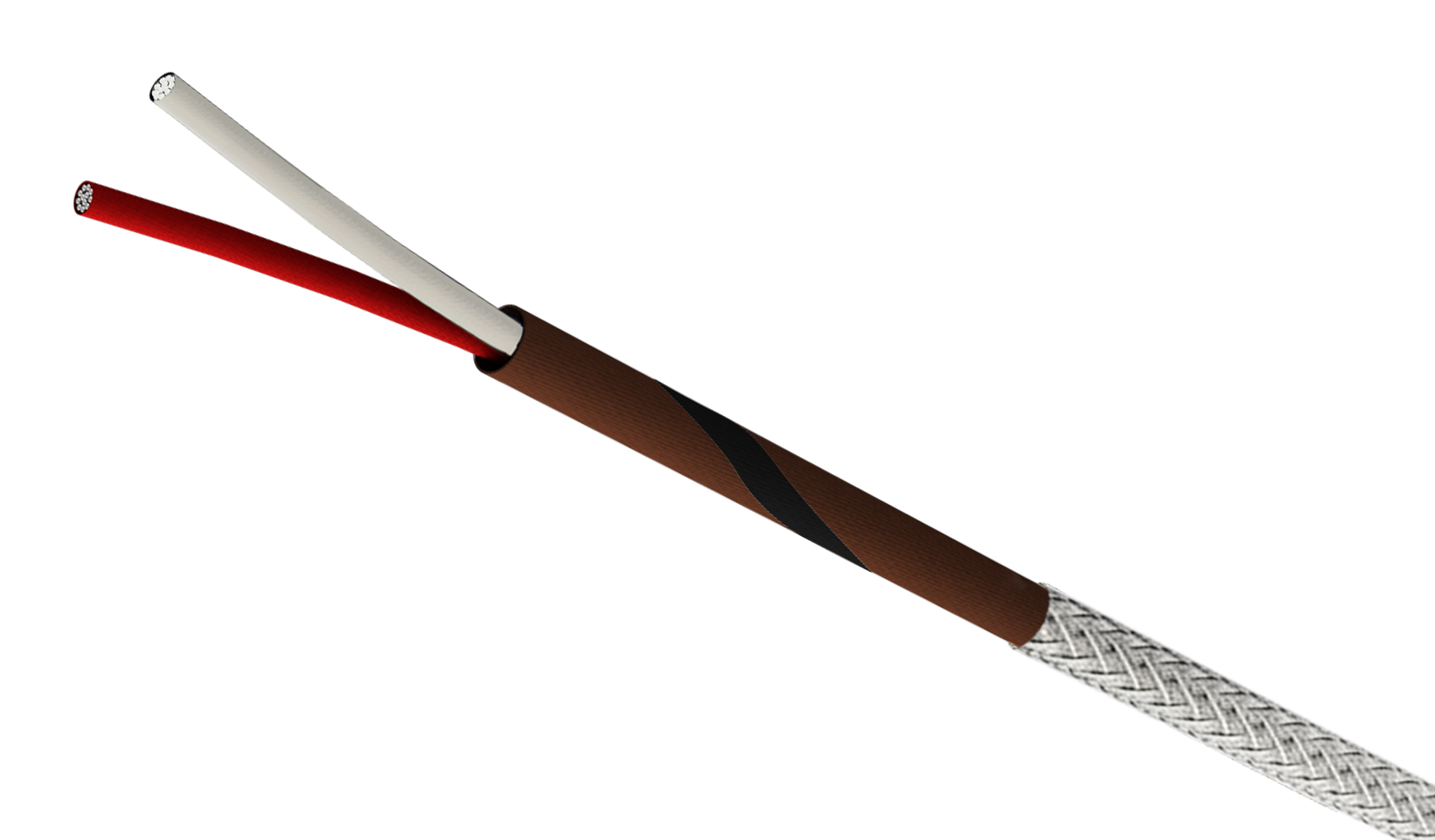

DESCRIPTION
Fiberglass insulation - fiberglass inner braid - Stainless steel braided armour
CONSTRUCTION
- Working temperature: up to 842 °F
- Reference standard: ASTM E 230 (ANSI MC.96.1)
- Conductor: solid, type J 24 AWG
- Insulation: braided fiberglass type “E” (+ impregnation)
- Colour code: negative red, positive white
- Core laying – up: flat twin
- Inner layer: braided fiberglass type “E”
- Impregnation: vinilic resin
- Colour: brown with black tracer
- Outer armour: stainless steel wire braid
- Colour code: neutral
